Ashok Precision Resistors

Other Details

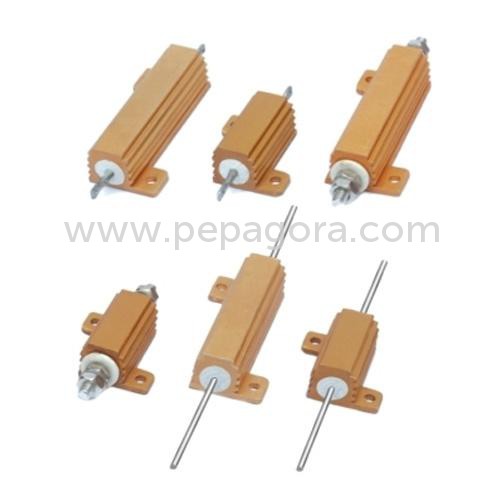

We have in store for our clients an exhaustive assortment of Aluminium Housed Power Resistors (Type: AE). Our resistors are acknowledged in the market for their superlative quality and electrical tolerance. These are developed as per the actual specifications and needs of our clients all across the nation. The construction of our range is mentioned below: Resistor wound in single layer on special ceramic core Resistance wire of low temperature coefficient is used For reliable contact, the wire end is welded to the end caps Element encased in aluminium housing The ends are sealed This provides protection in extreme climatic & varying humid conditions Resistors are individually checked for required tolerances For proper identification the respective tolerance and wattage values are printed on top of each resistor The technical specifications of these resistors are as follows: Dielectric voltage: 1500 V AC for 10w 3000v AC for 25w and 50w Deratings: Derates to zero power linerly at 275°c ambient. 50% derating necessary for unmounted resistors at ambient temperature of 25°c Power Ratings: 10watts, 25watts, 50watts Terminations: Screw or solderable lugs Tolerance: + 1%, ±2%,+ 5% Temperature coefficient: ± 50 PPM for high & middle value. + 100 PPM for low value For more details pls refer to the pdf file attached:We have in store for our clients an exhaustive assortment of Aluminium Housed Power Resistors (Type: AE). Our resistors are acknowledged in the market for their superlative quality and electrical tolerance. These are developed as per the actual specifications and needs of our clients all across the nation. The construction of our range is mentioned below: Resistor wound in single layer on special ceramic core Resistance wire of low temperature coefficient is used For reliable contact, the wire end is welded to the end caps Element encased in aluminium housing The ends are sealed This provides protection in extreme climatic & varying humid conditions Resistors are individually checked for required tolerances For proper identification the respective tolerance and wattage values are printed on top of each resistor The technical specifications of these resistors are as follows: Dielectric voltage: 1500 V AC for 10w 3000v AC for 25w and 50w Deratings: Derates to zero power linerly at 275°c ambient. 50% derating necessary for unmounted resistors at ambient temperature of 25°c Power Ratings: 10watts, 25watts, 50watts Terminations: Screw or solderable lugs Tolerance: + 1%, ±2%,+ 5% Temperature coefficient: ± 50 PPM for high & middle value. + 100 PPM for low value For more details pls refer to the pdf file attached:We have in store for our clients an exhaustive assortment of Aluminium Housed Power Resistors (Type: AE). Our resistors are acknowledged in the market for their superlative quality and electrical tolerance. These are developed as per the actual specifications and needs of our clients all across the nation. The construction of our range is mentioned below: Resistor wound in single layer on special ceramic core Resistance wire of low temperature coefficient is used For reliable contact, the wire end is welded to the end caps Element encased in aluminium housing The ends are sealed This provides protection in extreme climatic & varying humid conditions Resistors are individually checked for required tolerances For proper identification the respective tolerance and wattage values are printed on top of each resistor The technical specifications of these resistors are as follows: Dielectric voltage: 1500 V AC for 10w 3000v AC for 25w and 50w Deratings: Derates to zero power linerly at 275°c ambient. 50% derating necessary for unmounted resistors at ambient temperature of 25°c Power Ratings: 10watts, 25watts, 50watts Terminations: Screw or solderable lugs Tolerance: + 1%, ±2%,+ 5% Temperature coefficient: ± 50 PPM for high & middle value. + 100 PPM for low value For more details pls refer to the pdf file attached:We have in store for our clients an exhaustive assortment of Aluminium Housed Power Resistors (Type: AE). Our resistors are acknowledged in the market for their superlative quality and electrical tolerance. These are developed as per the actual specifications and needs of our clients all across the nation. The construction of our range is mentioned below: Resistor wound in single layer on special ceramic core Resistance wire of low temperature coefficient is used For reliable contact, the wire end is welded to the end caps Element encased in aluminium housing The ends are sealed This provides protection in extreme climatic & varying humid conditions Resistors are individually checked for required tolerances For proper identification the respective tolerance and wattage values are printed on top of each resistor The technical specifications of these resistors are as follows: Dielectric voltage: 1500 V AC for 10w 3000v AC for 25w and 50w Deratings: Derates to zero power linerly at 275°c ambient. 50% derating necessary for unmounted resistors at ambient temperature of 25°c Power Ratings: 10watts, 25watts, 50watts Terminations: Screw or solderable lugs Tolerance: + 1%, ±2%,+ 5% Temperature coefficient: ± 50 PPM for high & middle value. + 100 PPM for low value For more details pls refer to the pdf file attached:We have in store for our clients an exhaustive assortment of Aluminium Housed Power Resistors (Type: AE). Our resistors are acknowledged in the market for their superlative quality and electrical tolerance. These are developed as per the actual specifications and needs of our clients all across the nation. The construction of our range is mentioned below: Resistor wound in single layer on special ceramic core Resistance wire of low temperature coefficient is used For reliable contact, the wire end is welded to the end caps Element encased in aluminium housing The ends are sealed This provides protection in extreme climatic & varying humid conditions Resistors are individually checked for required tolerances For proper identification the respective tolerance and wattage values are printed on top of each resistor The technical specifications of these resistors are as follows: Dielectric voltage: 1500 V AC for 10w 3000v AC for 25w and 50w Deratings: Derates to zero power linerly at 275°c ambient. 50% derating necessary for unmounted resistors at ambient temperature of 25°c Power Ratings: 10watts, 25watts, 50watts Terminations: Screw or solderable lugs Tolerance: + 1%, ±2%,+ 5% Temperature coefficient: ± 50 PPM for high & middle value. + 100 PPM for low value For more details pls refer to the pdf file attached:We have in store for our clients an exhaustive assortment of Aluminium Housed Power Resistors (Type: AE). Our resistors are acknowledged in the market for their superlative quality and electrical tolerance. These are developed as per the actual specifications and needs of our clients all across the nation. The construction of our range is mentioned below: Resistor wound in single layer on special ceramic core Resistance wire of low temperature coefficient is used For reliable contact, the wire end is welded to the end caps Element encased in aluminium housing The ends are sealed This provides protection in extreme climatic & varying humid conditions Resistors are individually checked for required tolerances For proper identification the respective tolerance and wattage values are printed on top of each resistor The technical specifications of these resistors are as follows: Dielectric voltage: 1500 V AC for 10w 3000v AC for 25w and 50w Deratings: Derates to zero power linerly at 275°c ambient. 50% derating necessary for unmounted resistors at ambient temperature of 25°c Power Ratings: 10watts, 25watts, 50watts Terminations: Screw or solderable lugs Tolerance: + 1%, ±2%,+ 5% Temperature coefficient: ± 50 PPM for high & middle value. + 100 PPM for low value For more details pls refer to the pdf file attached:
